New Illumination Portfolio for DIC

SXR -LED Illumination System with X-Illumination Controller


Dantec Dynamics is pleased to announce the release of our of new models of our X-& SX-LED Illumination Systems with the new X-Illumination Controller.

But what is the difference, and more importantly, the advantage compared to the older illumination models?

  1. Higher optical outputs
  2. Clear & consistent application-based segmentation of illumination solutions
  3. Modular & multi-system functionality with the XR/XB/SXR/SXB illumination system with the X-Illumination Controller
  4. Standardized safety eyewear

Higher Optical Outputs

At the same -off distance; the new XR/XB model is 1.3x brighter and the new SXR/SXB model is 1.5x brighter than the older XR/XB and SXR/SX models, respectively.

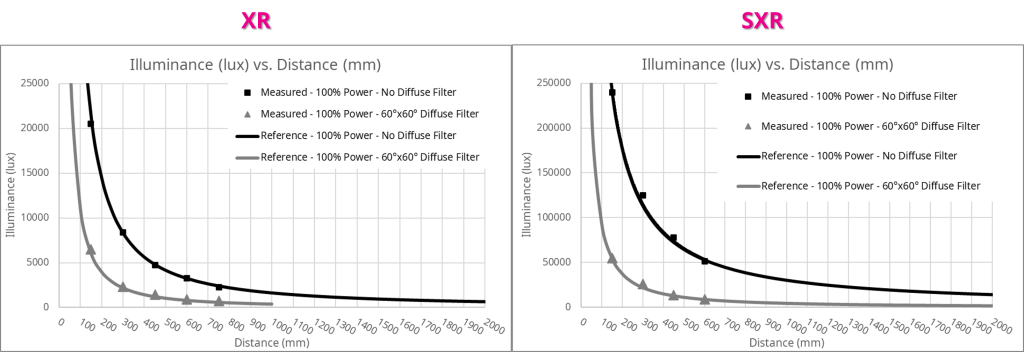

XR/SXR-LED Illuminance (lux) vs. distance (mm) charts


Clear & consistent application-based segmentation of illumination solutions

We have a large portfolio of illumination solutions for Digital Image Correlation (DIC) systems that differ according to; illuminance optical output, colour wavelength, and illumination triggering mode. The selection of the most appropriate illumination system for a materials testing application is dependent on the; required acquisition frame rate, minimum (usable) shutter time, distance-to-object (DtO), speckle contrast, and test temperature.

Illumination solutions portfolio

Modular & multi-system functionality with the XR/XB/SXR/SXB illumination system with the X-Illumination Controller

X-Illumination Controller (Front-View/Side-View)

The XR-LED, XB-LED, SXR-LED, or SXB-LED Illumination Systems can be retrofitted with the (optional) X-Illumination Controller) for:

  • 8x Multi-illumination unit system control with for MulticamDIC or MSpeedDIC systems,
  • Adjustable dimming intensity, and
  • Strobe (pulsed) illumination trigger mode


Irrespective of the illumination unit type, wavelength, and illumination trigger mode, any combination of XR-LED, XB-LED, SXR-LED, or SXB-LED Illumination Systems unit can be controlled together or independently. Using the X-Illumination Controller, any illumination unit can achieve a 100 ns strobe length at full optical power with 220 ns pulse (level) delay.

Standardized safety eyewear

With any new illumination models, we provide safety eyewear included (as standard) with each item. Safety eyewear ensures that users can work safely with any illumination system, particular systems of high optical output intensity and those operated in strobe illumination triggered mode.

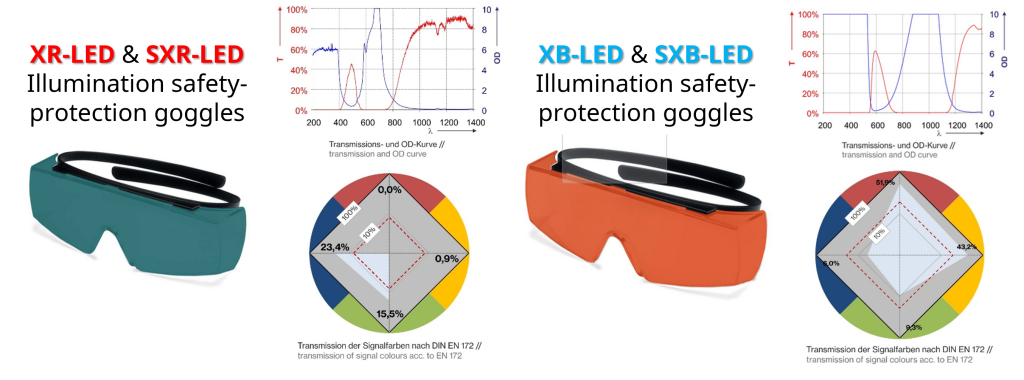

Illumination safety-protection goggles (red & blue)

More information about Dantec Dynamics new Illumination Portfolio
